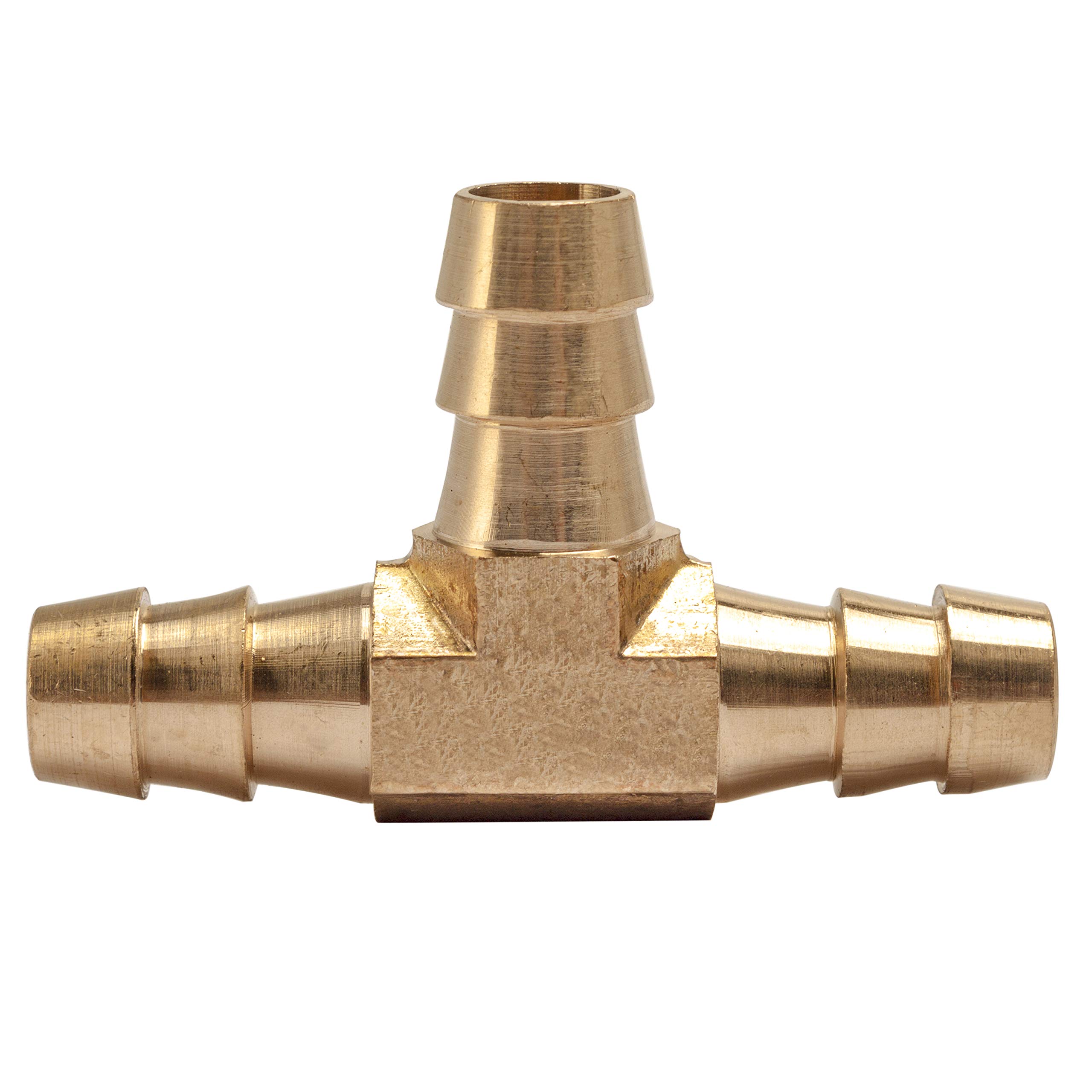

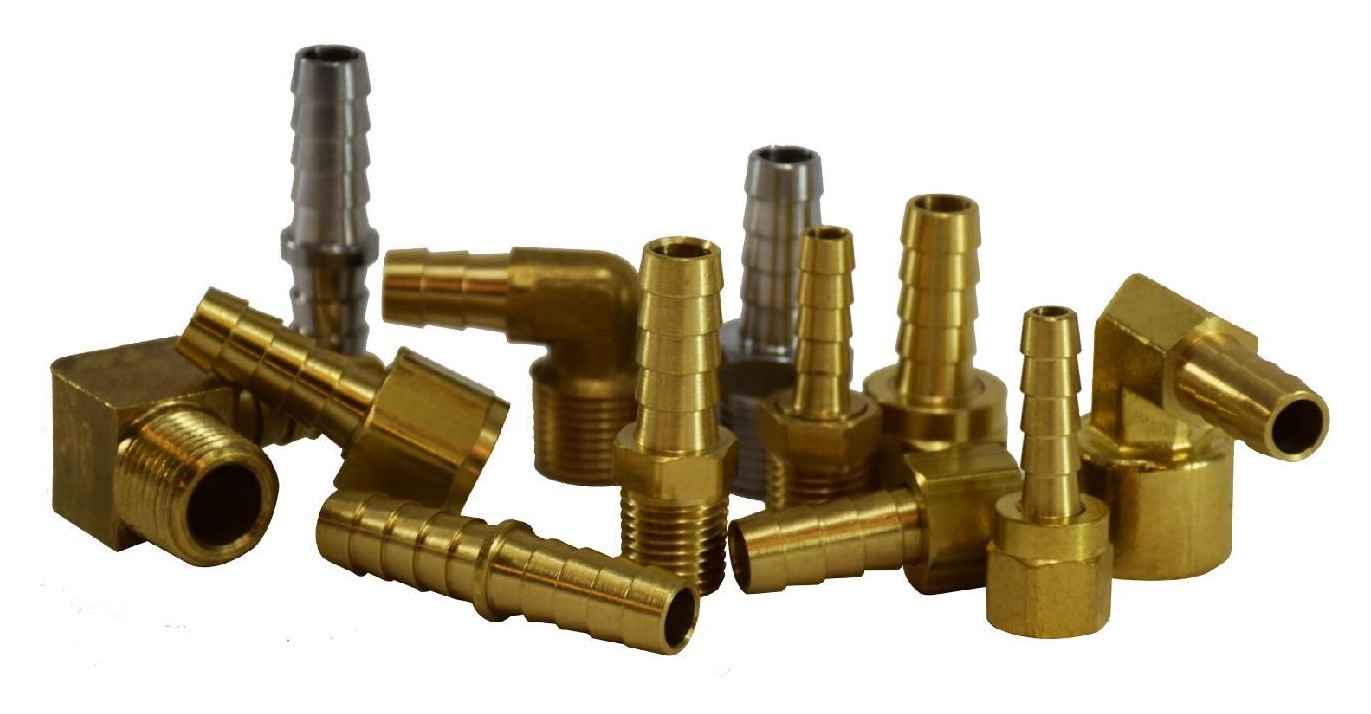

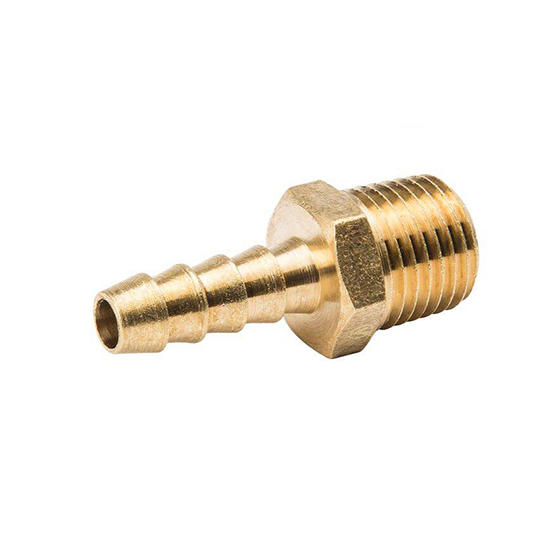

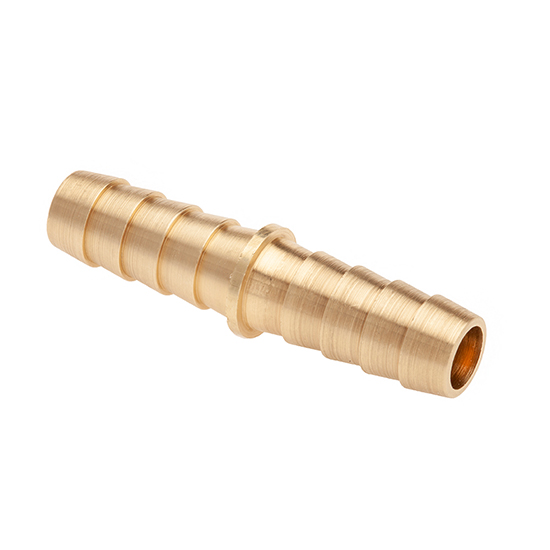

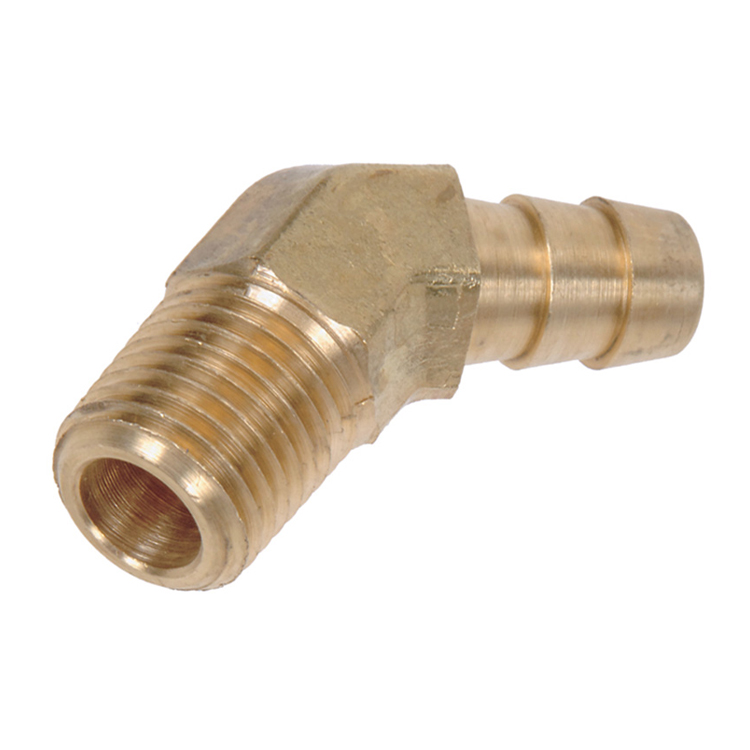

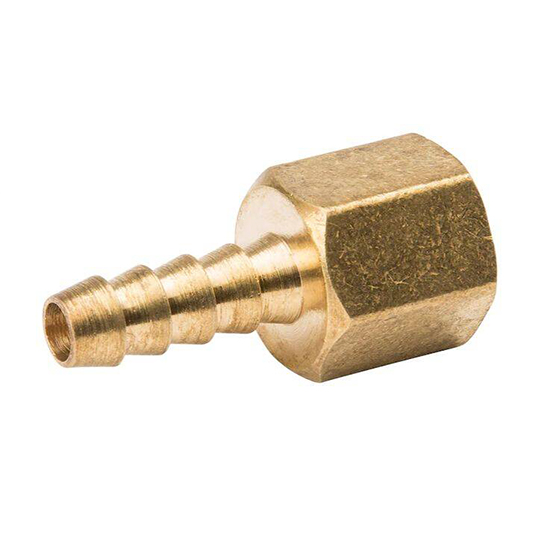

Type of Fittings Hose Barb
Material Brass (CA 36000) / Lead Free Brass
Threads NPT / UNF-UNC / METRIC
Temperature Range -40°F to +160°F
Pressure Max. 150 PSI
Conformance Meet Specification and Standards of ASA, ASME, SAE
Assembly Instructions
  1. Cut hose cleanly and squarely to length.
  2. Slide clamp on hose.
  3. Lubricate hose. Push hose on fitting until hose bottom against stop ring or hex.
  4. Position hose clamp as shown below figure and secure with a screwdriver or wrench.
  5. Maintain "A" dimension noted below for proper clamp positioning.
    Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
