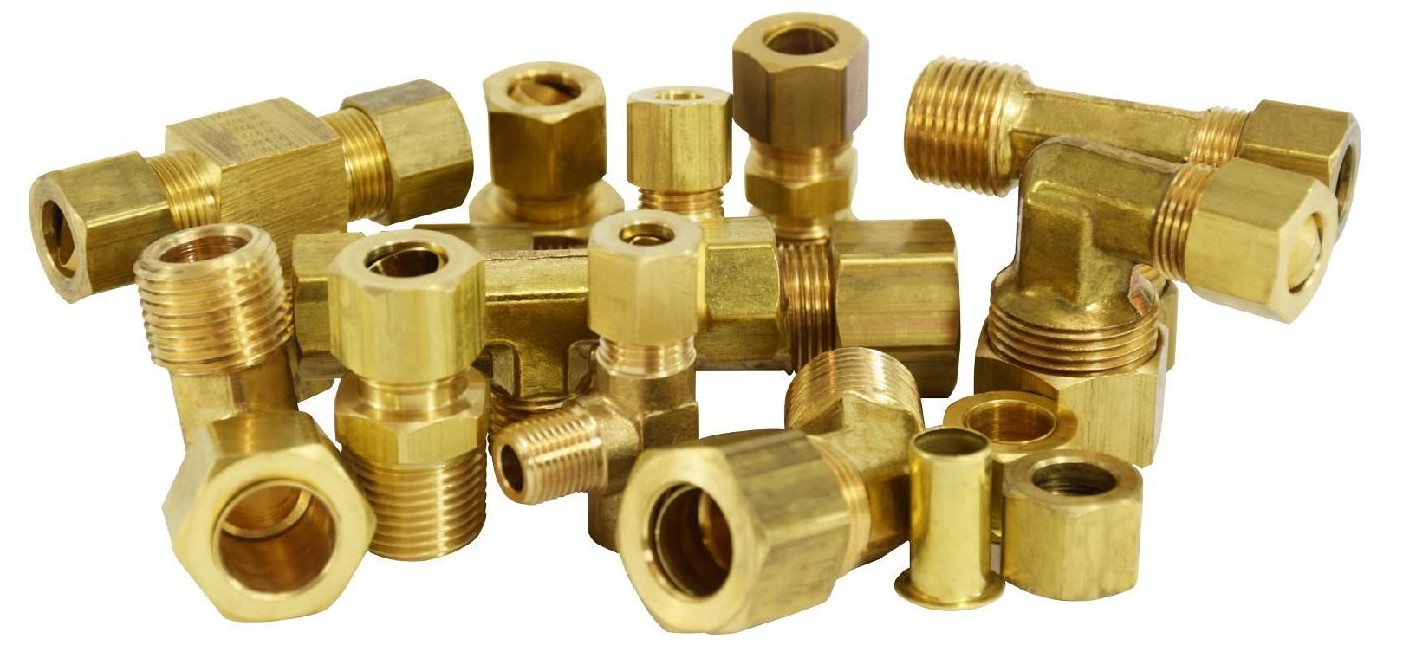

Type of Fittings Compression
Material Brass / Lead Free Brass

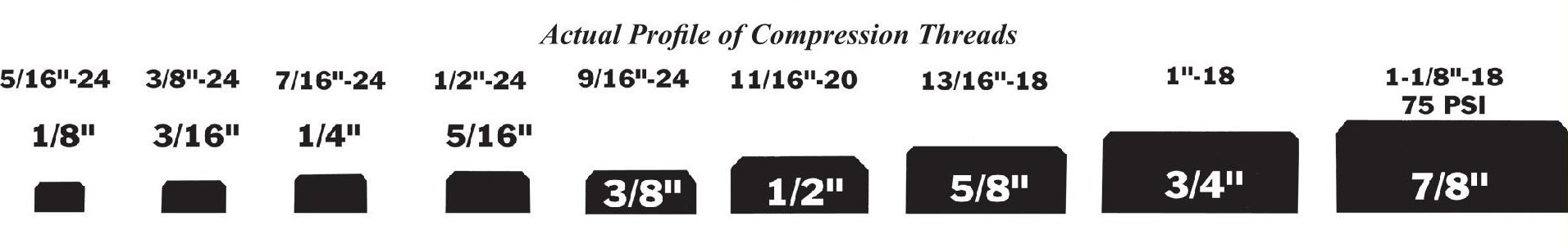

Threads NPT / UNF-UNC / METRIC
Temperature Range -65°F to +250°F
Vibration Good resistance - use long nut when greater vibration resistance is required.
Conformance Meet Specification and Standards of ASA, ASME, SAE
Assembly Instructions
  1. Cut tubing to desired length.
  2. Slide nut and then sleeve on tube. Threaded end "A" of nut ust face towards fitting.
  3. Insert tubing into fitting body. Be sure tubing is bottomed on fitting shoulder.
  4. Lubricate threads and assemble nut to fitting body.
  5. Tighten nut hand tight. From that point, tighten with a wrench the number of turns indicated in the chart below.
Tube Size 1/8" thru 1/4", 5/6", 3/8" thru 1"
Additional Turns from Hand Tight 1-1/4", 1-3/4", 2-1/4"
