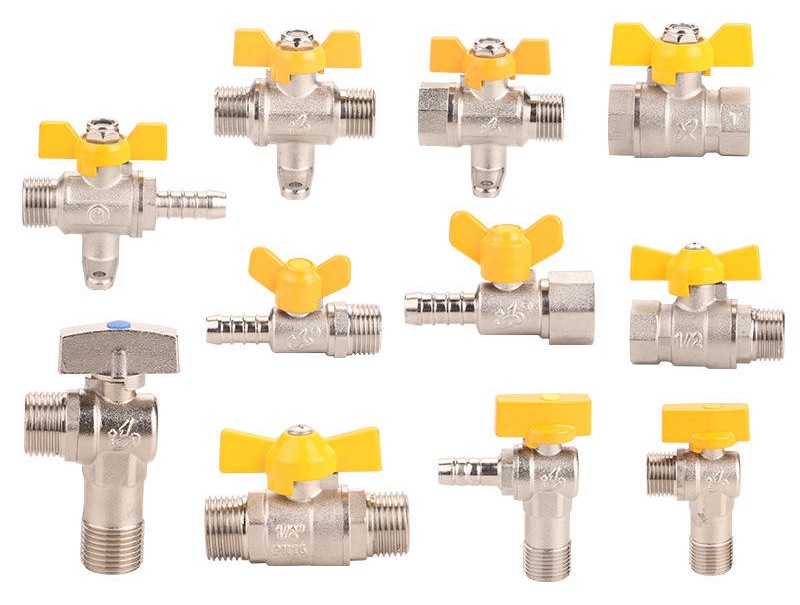

| Product Type | Brass Gas Ball Valve |
|---|---|
| Application | Natural Gas / LPG / PNG / CNG Gas Lines |
| Valve Type | Quarter Turn Ball Valve |
| Operation | Lever Operated (Manual) |
| Body Material | Forged Brass (CW617N / IS 319 Gr.2 or equivalent) |
| Steam Material | Brass |
| Seat Material | PTFE (Teflon) |
| Seal / O-Ring | NBR / Viton (Gas Grade) |
| Handle Material | Mild Steel with PVC Coating / Aluminium |
| End Connection | Screwed BSP (Male/Female) as per IS 554 |
| Bore Type | Full Bore |
| Size Range | ½″, ¾″, 1″, 1¼″, 1½″, 2″ |
| Pressure Rating | PN 16 / Up to 16 Bar |
| Temperature Range | -20°C to +120°C |
| Surface Finish | Natural Brass / Nickel Plated |
| Standard Compliance | IS 17031 / EN 331 / BS746 |
| Testing | 100% Air Pressure & Leakage Tested |
