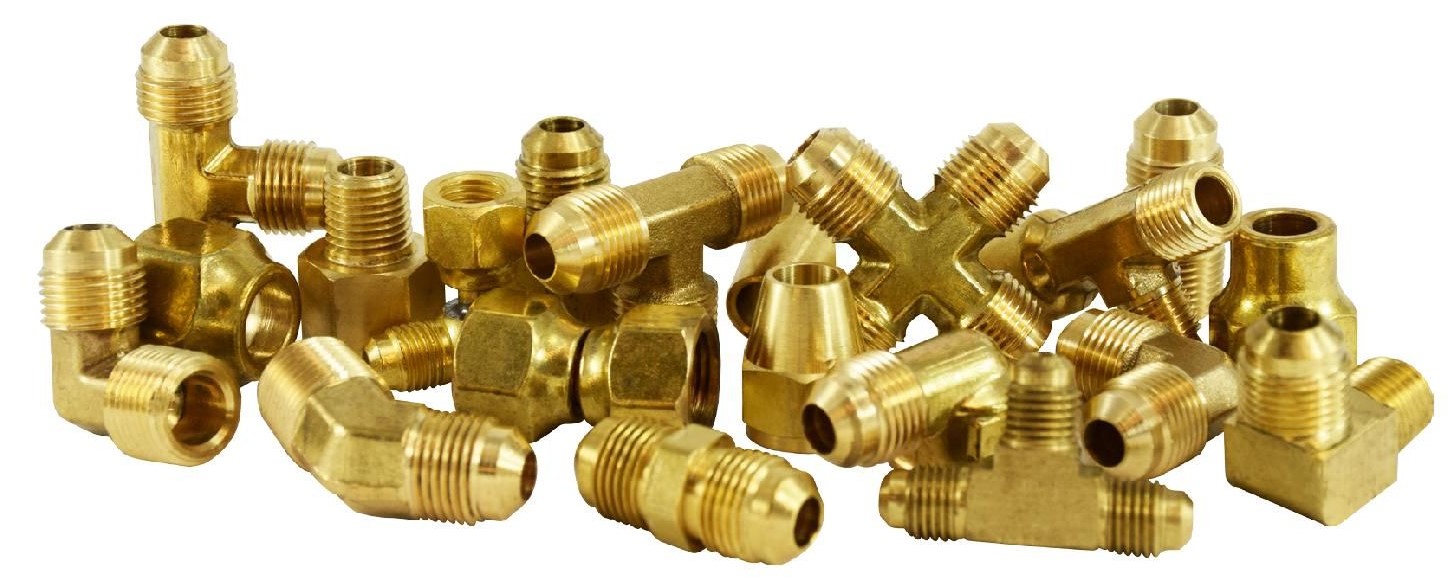

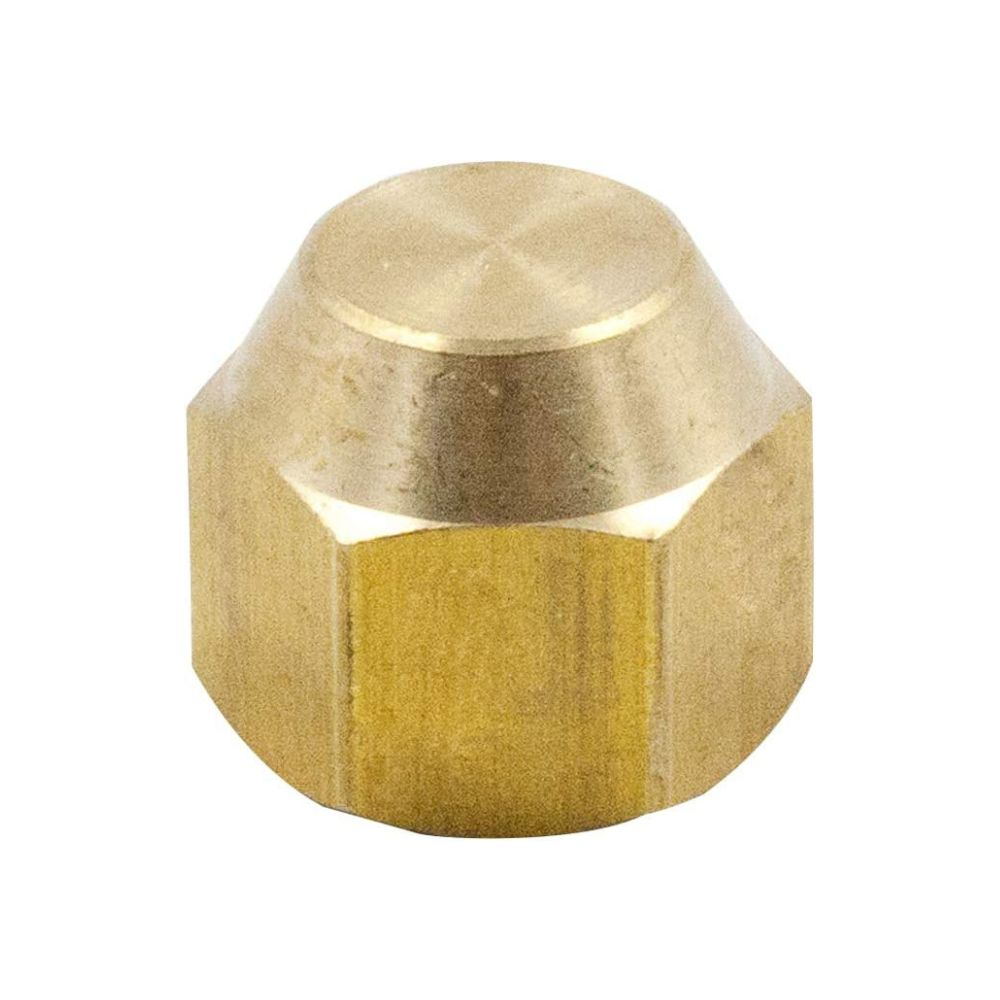

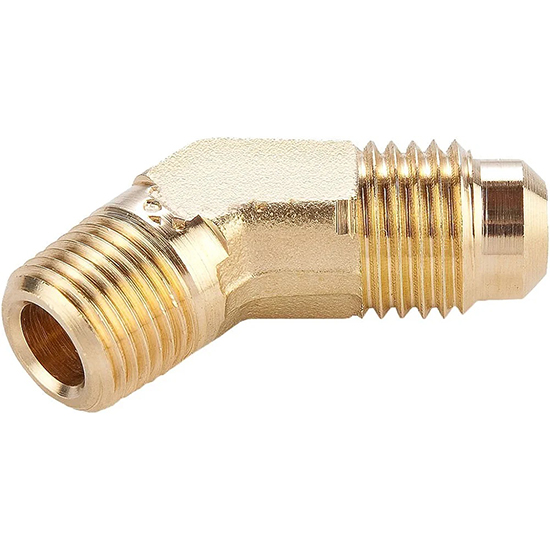

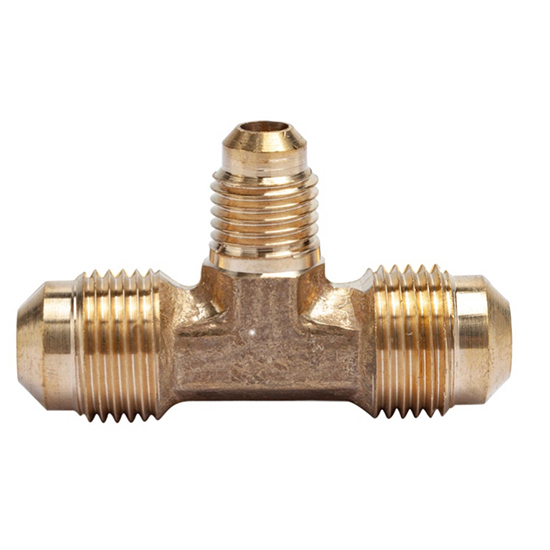

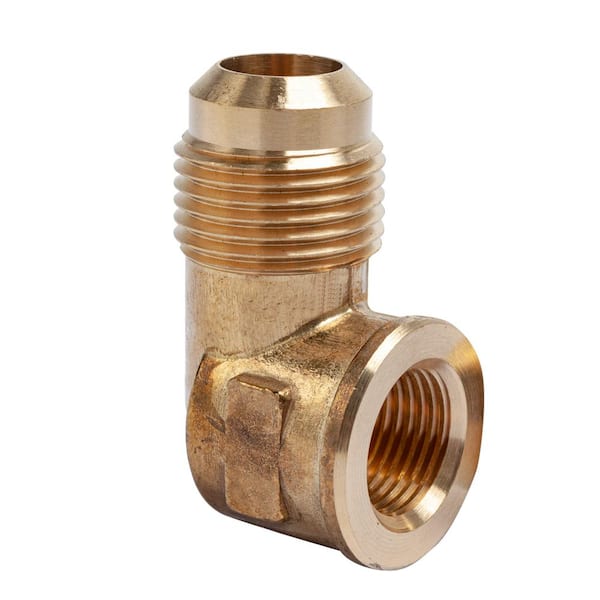

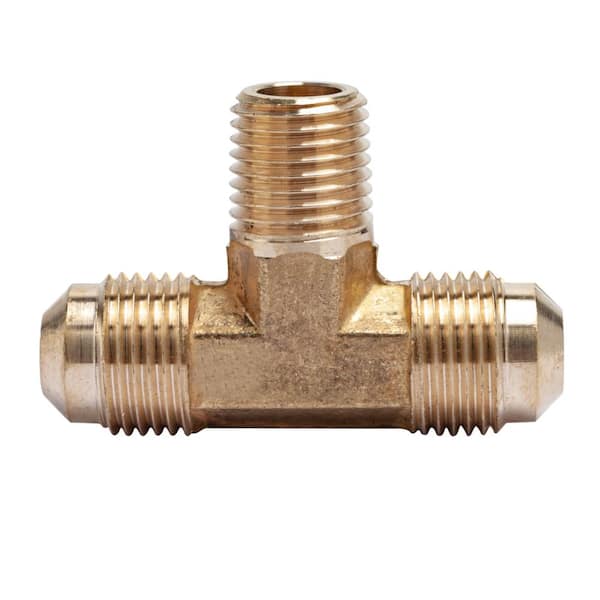

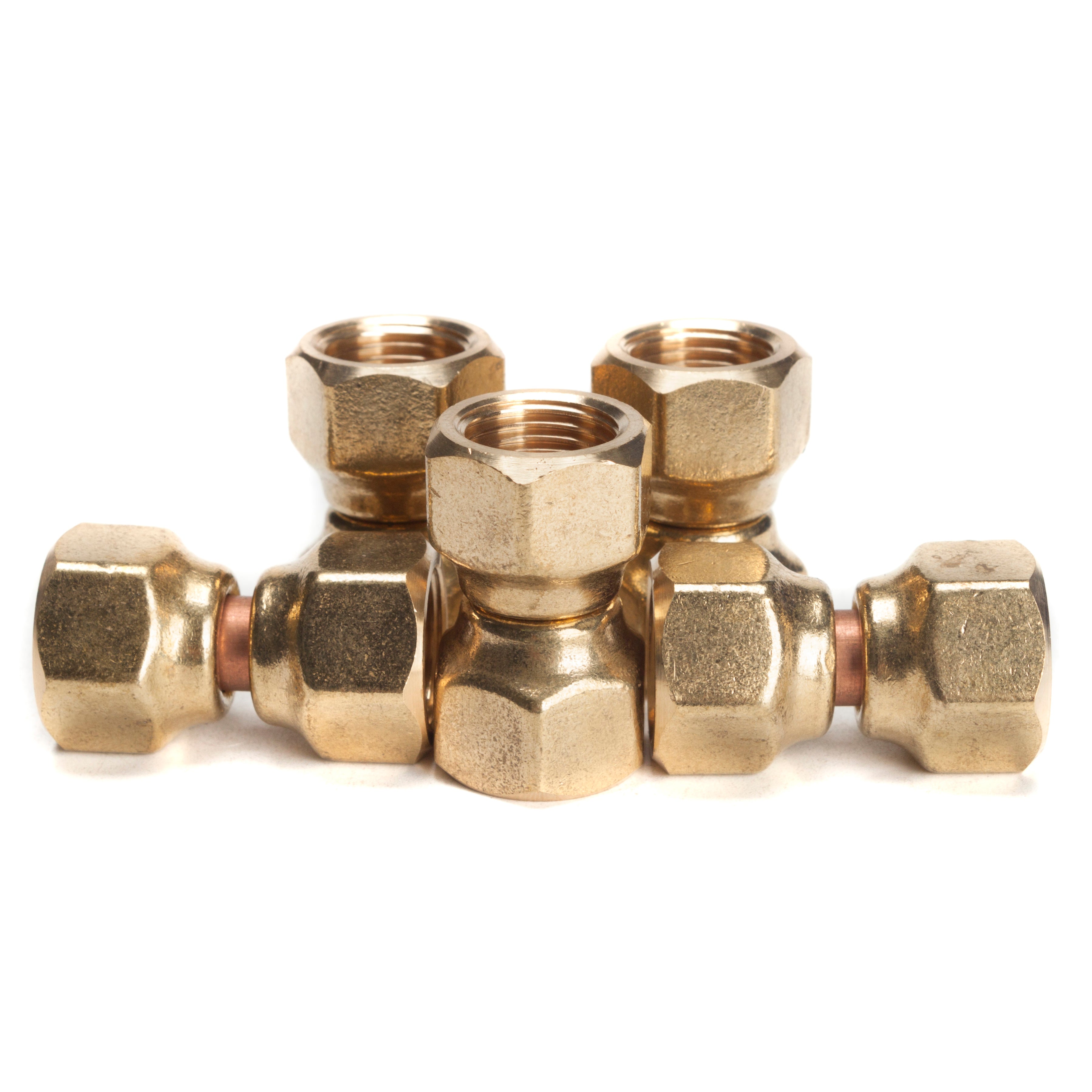

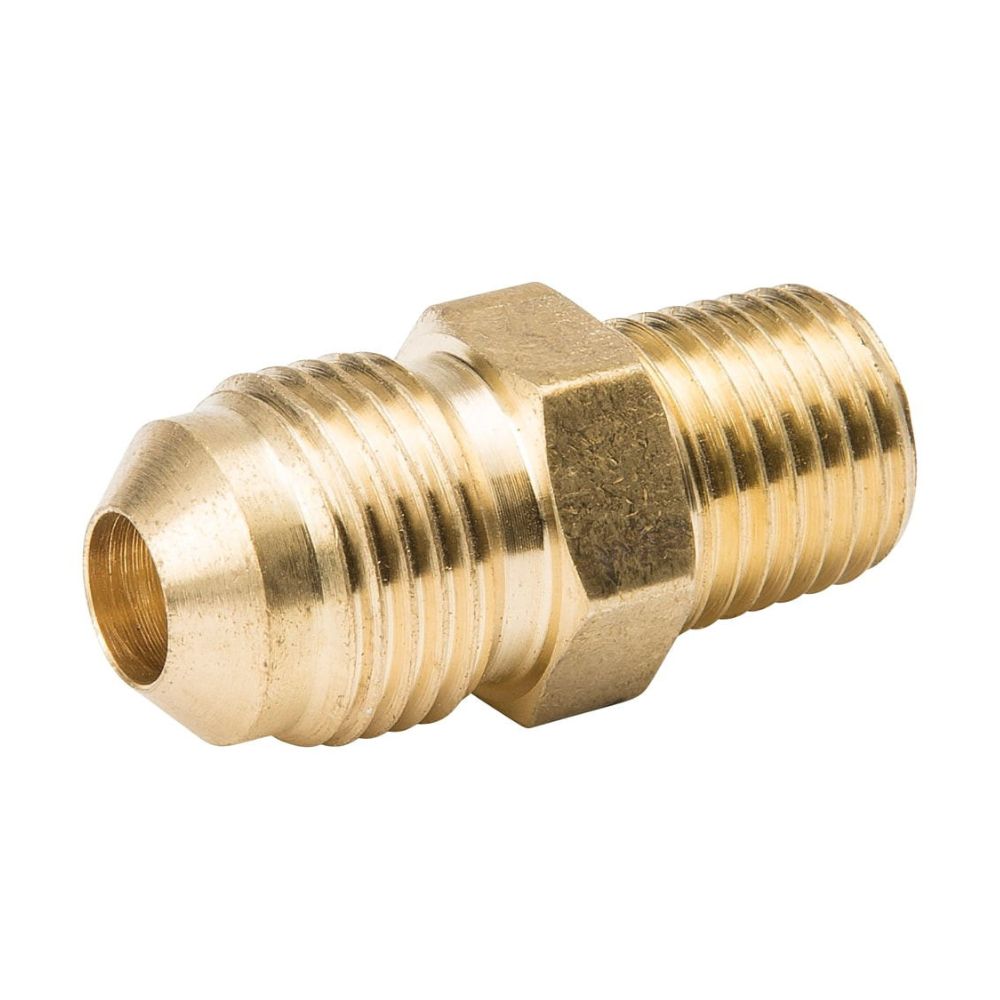

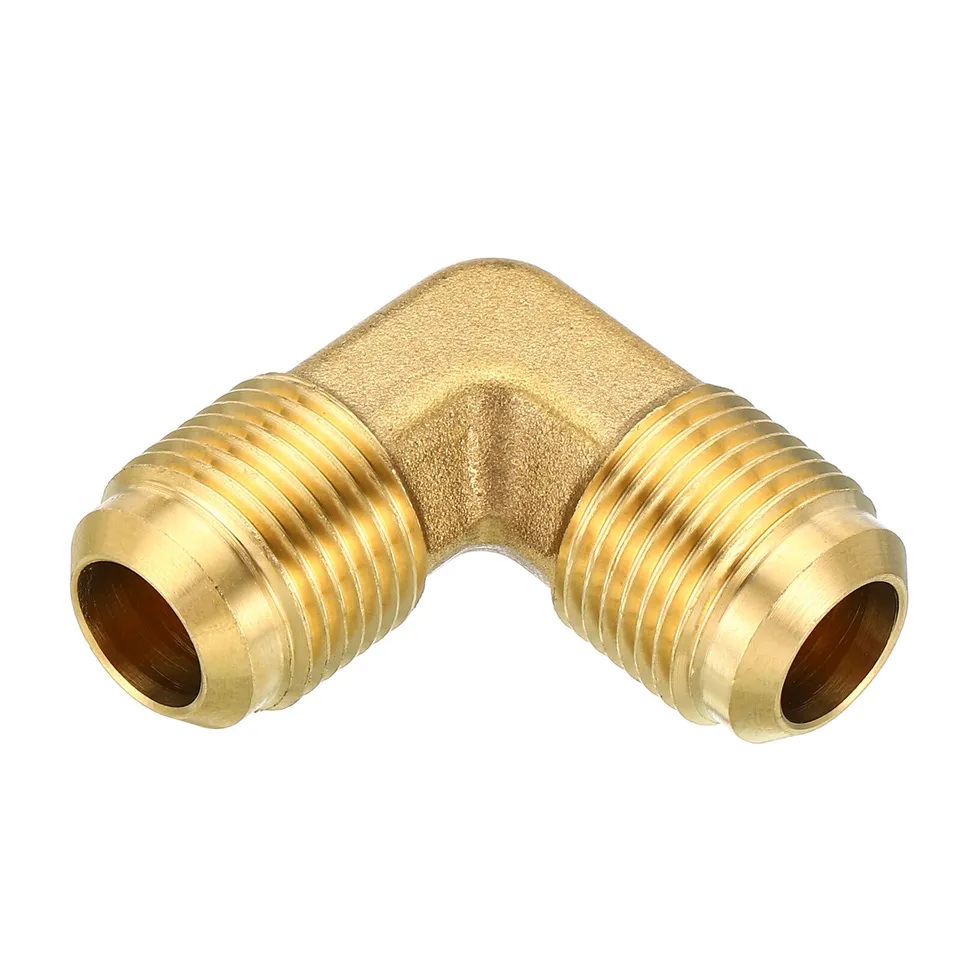

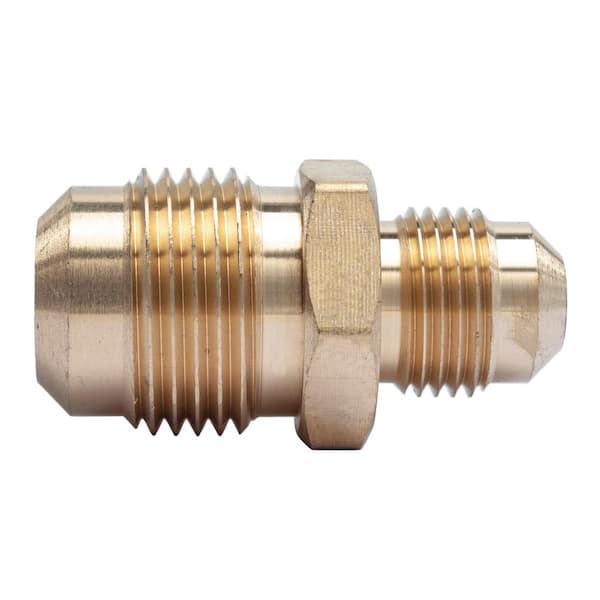

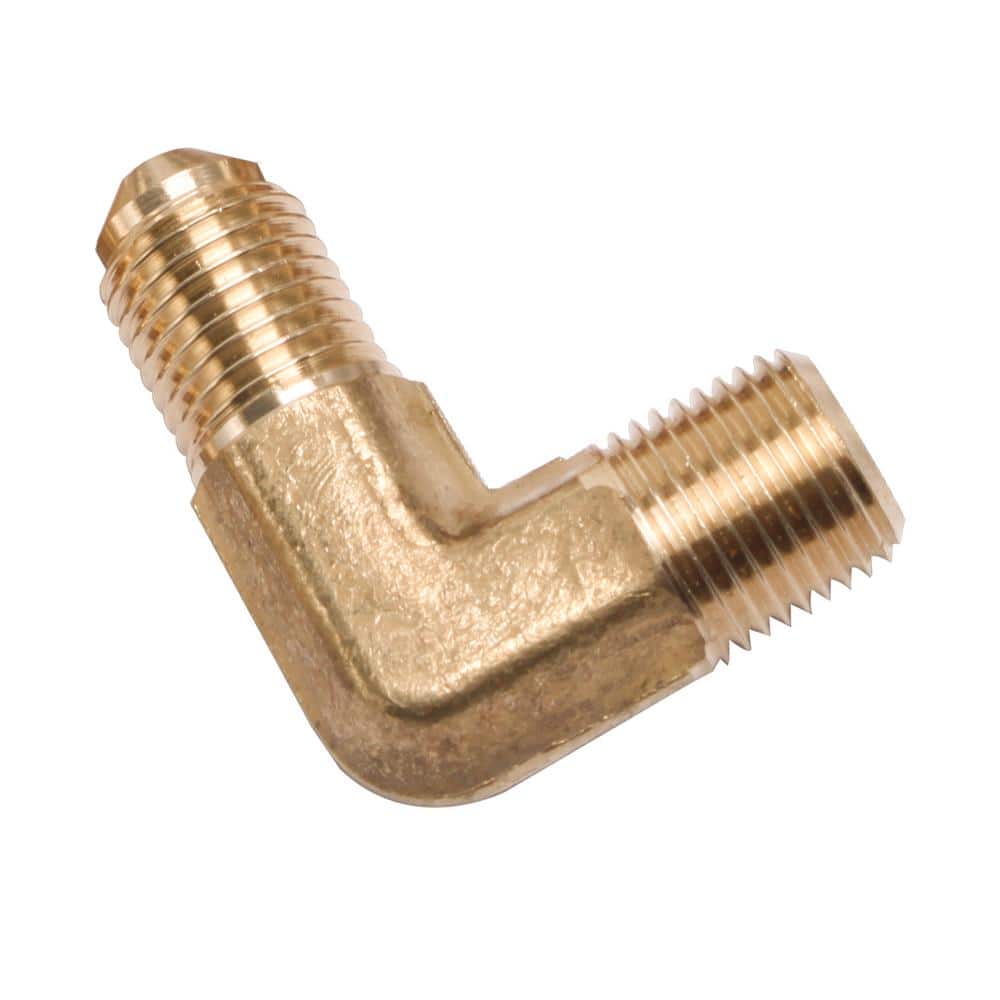

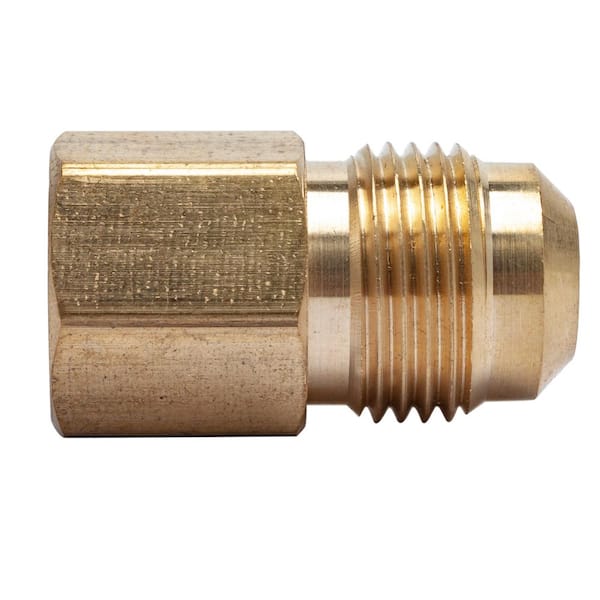

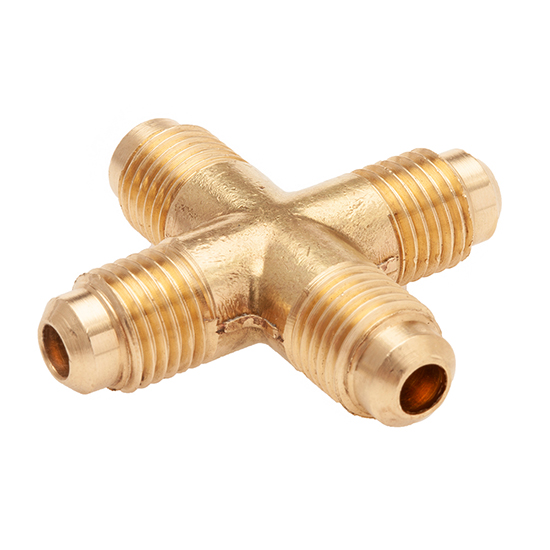

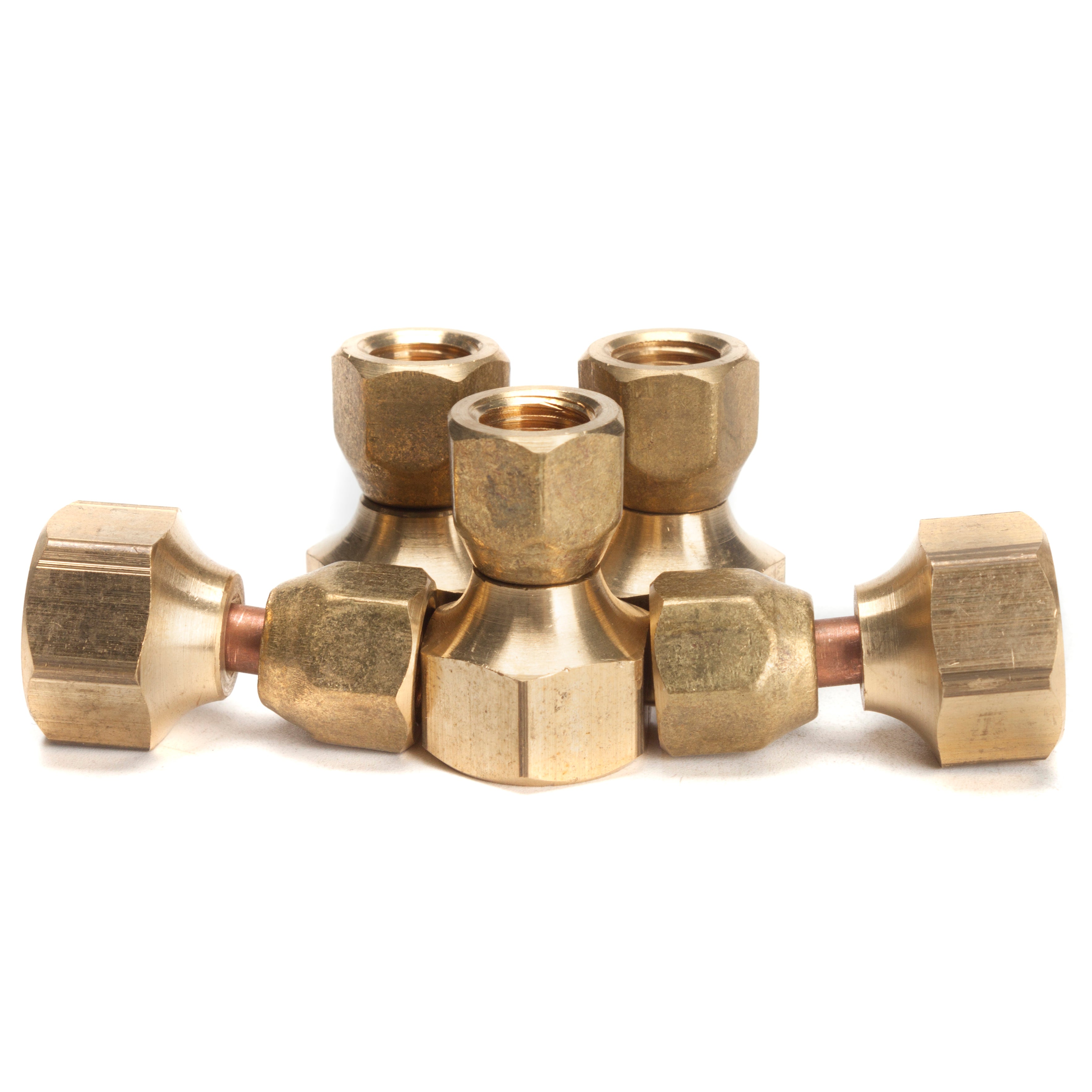

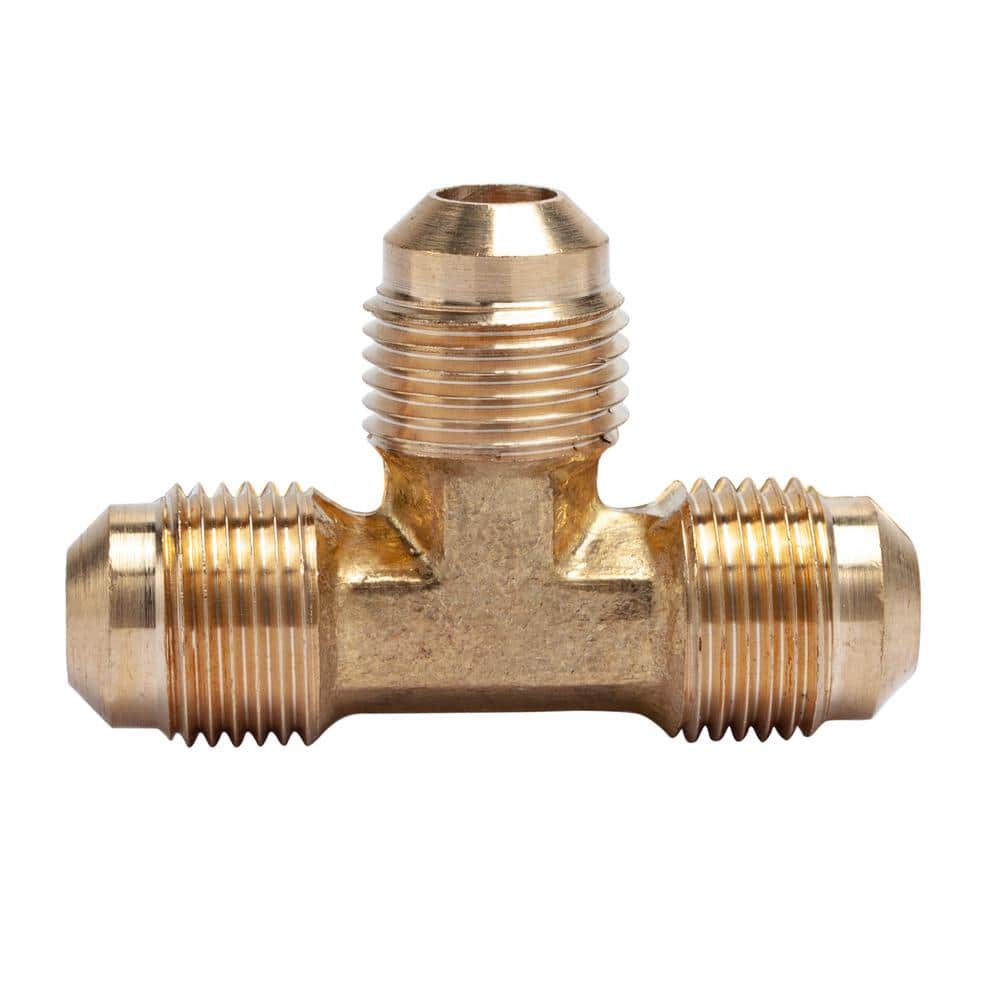

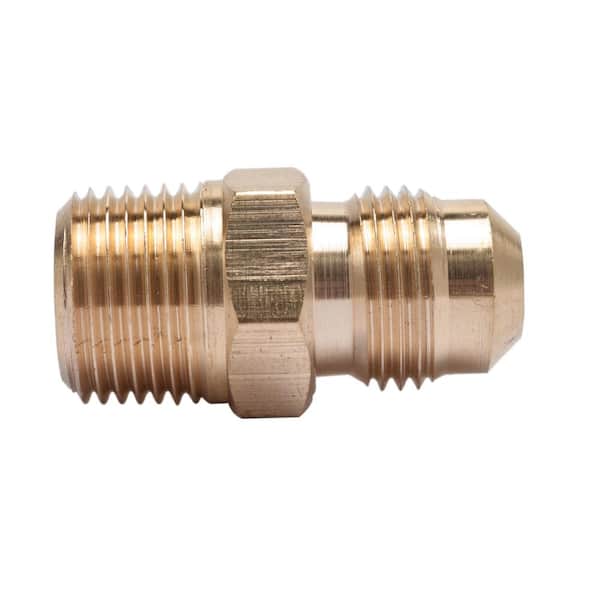

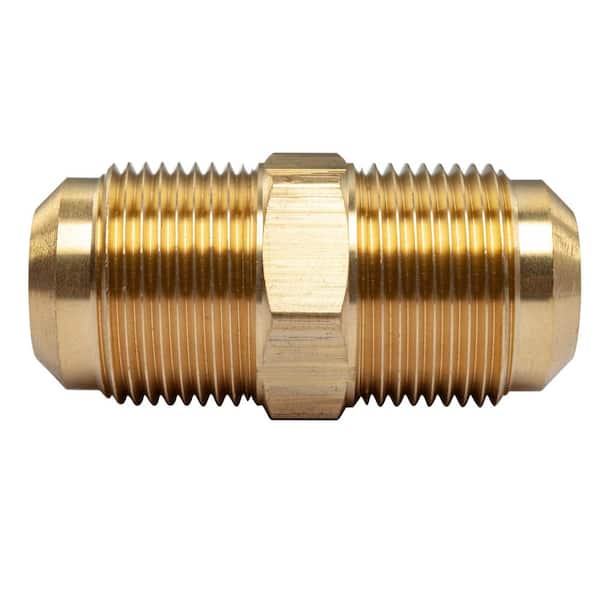

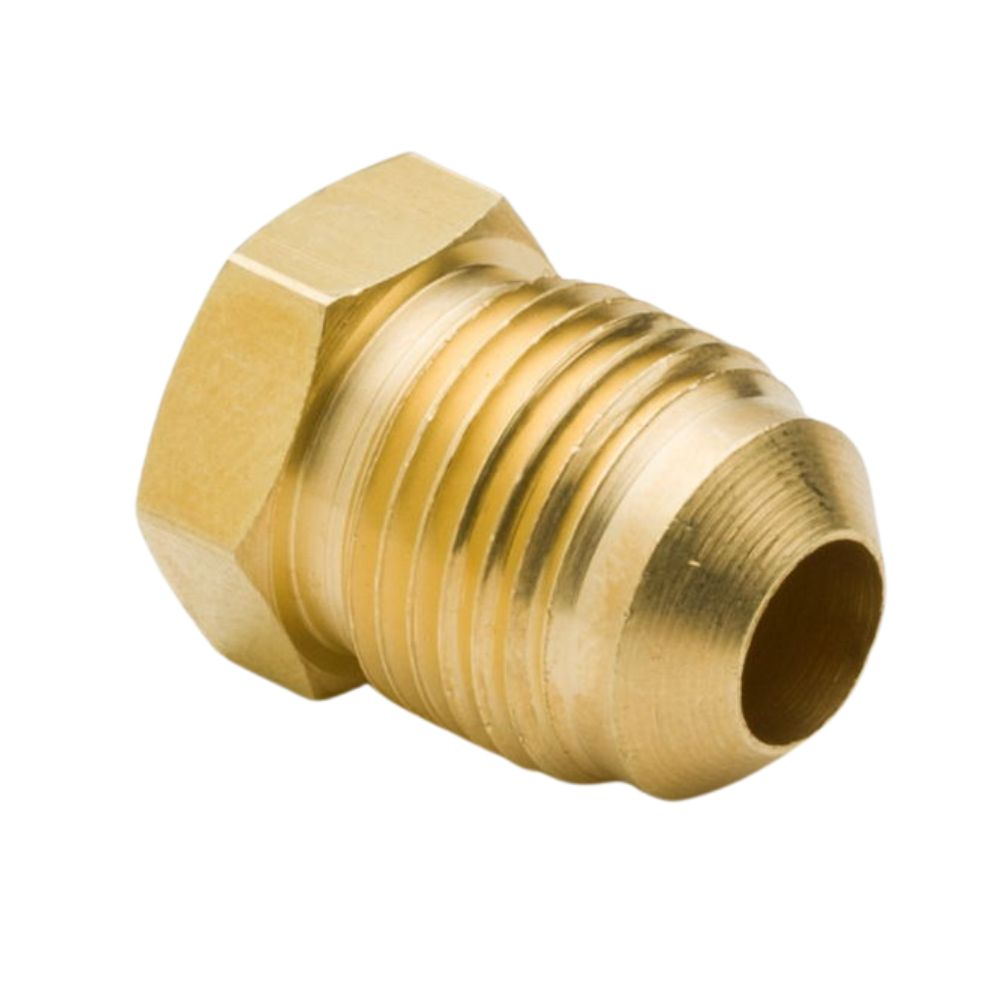

Type of Fittings SAE 45° Flare Fittings
Material Brass / Lead Free Brass
Threads NPT / UNF-UNC / METRIC
Temperature Range -65°F to +250°F

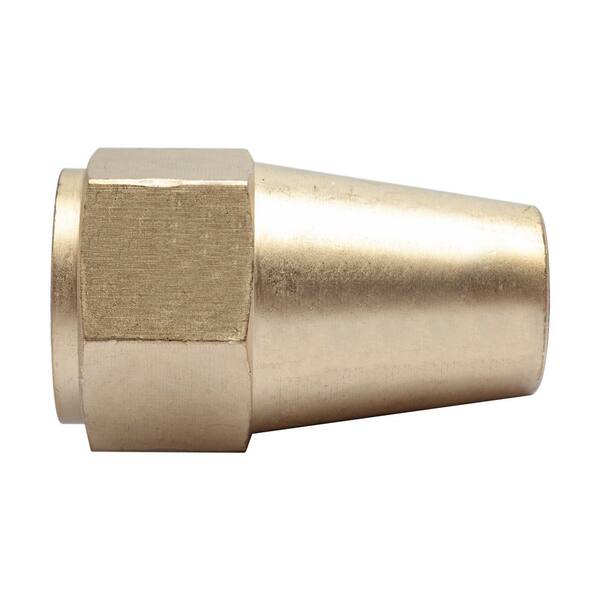

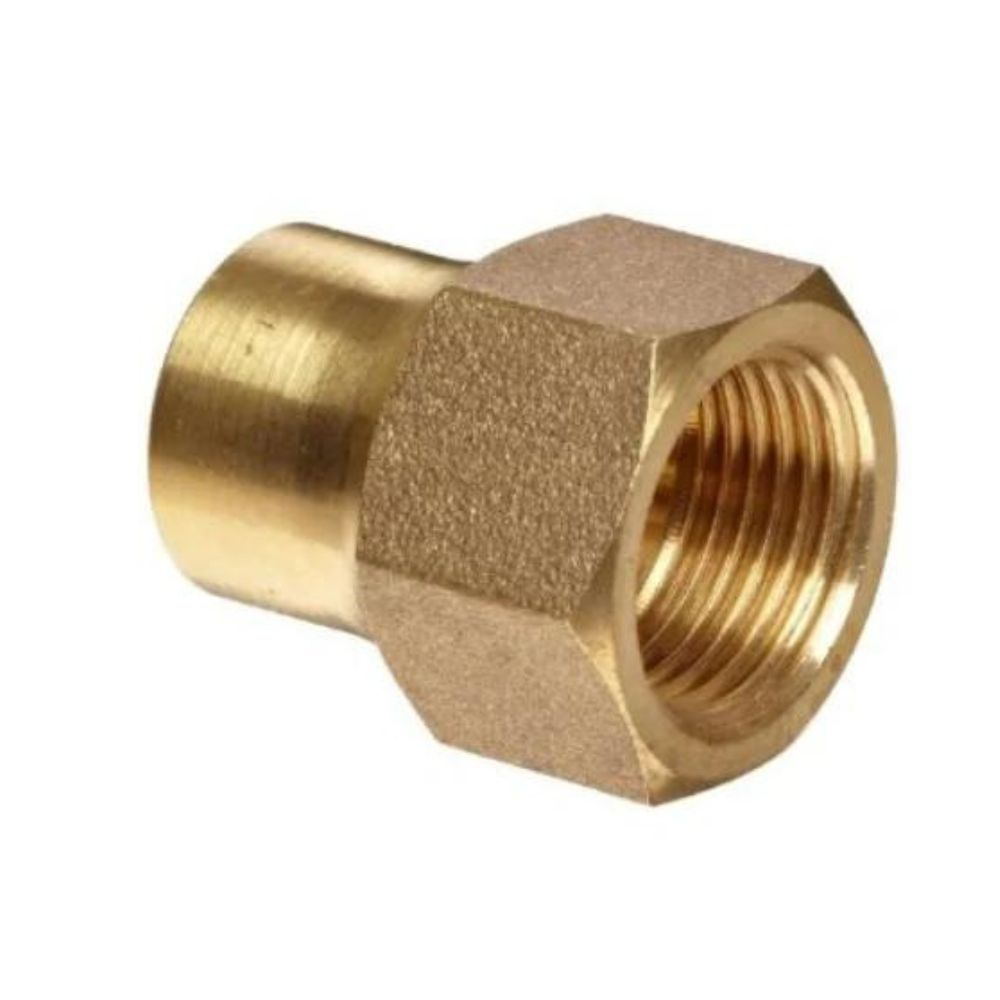

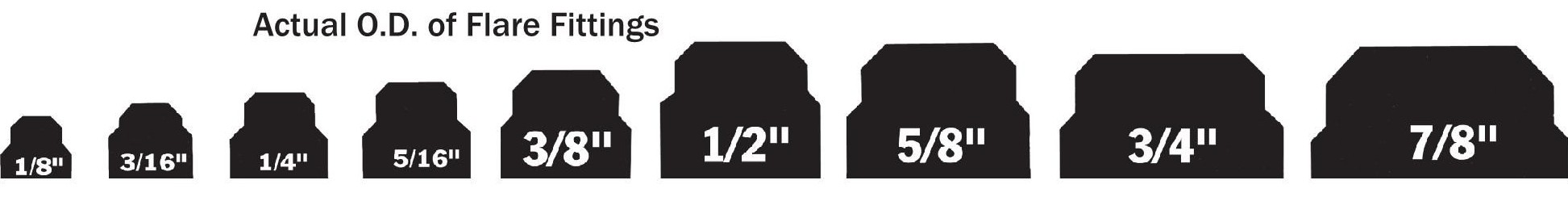

Vibration Good resistance - use long nut when greater vibration resistance is required.
Conformance Meet Specification and Standards of ASA, ASME, SAE
Assembly Instructions
  1. Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.

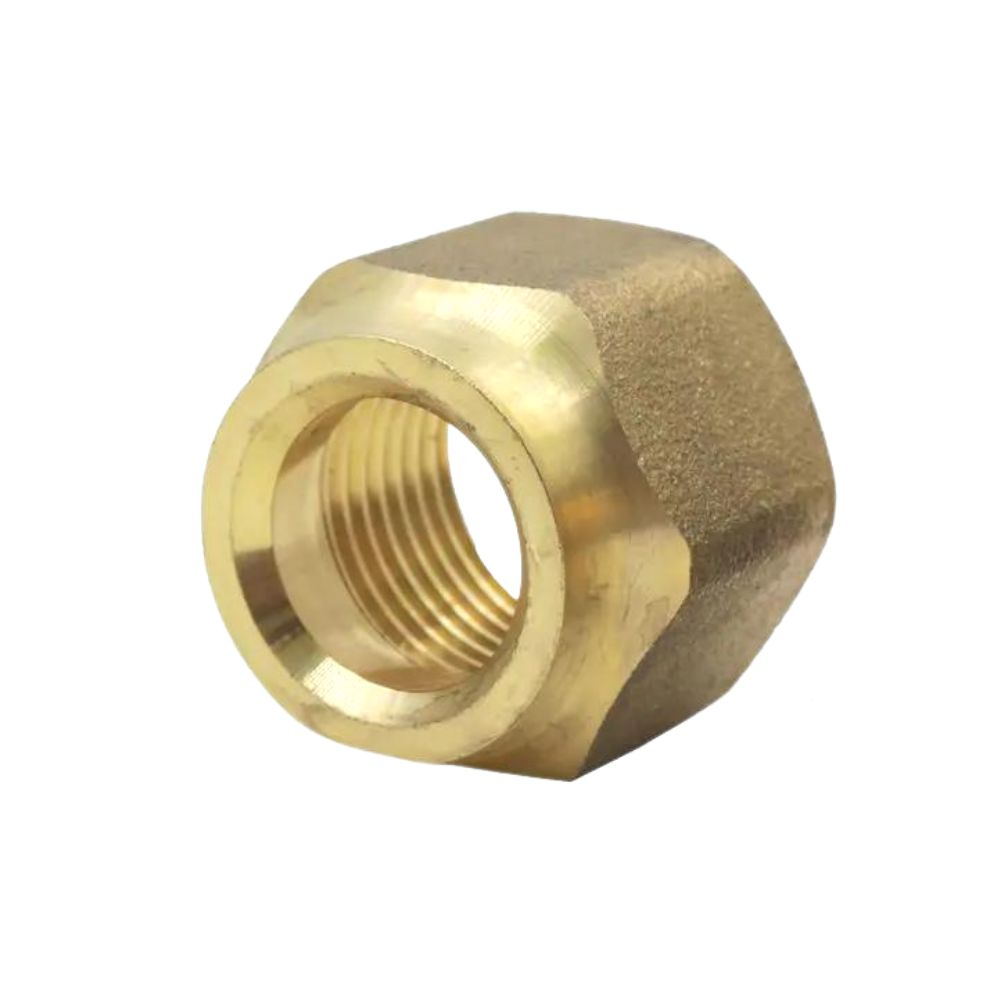

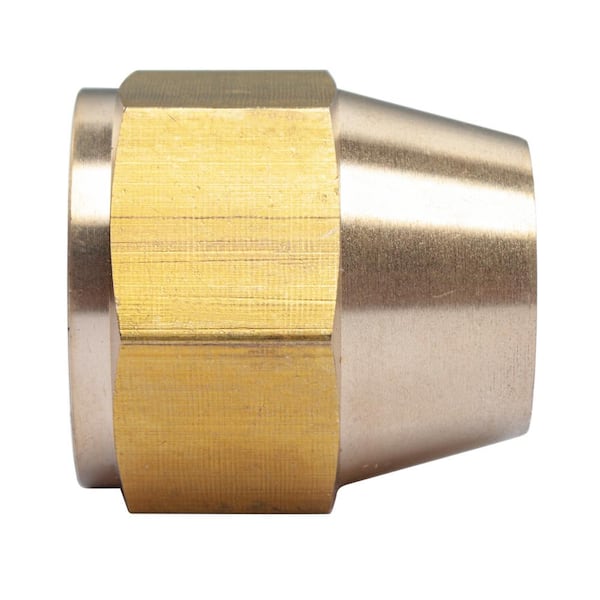

  2. Slide nut on tube. Threaded end "A" of nut must face out.
  3. Flare end of tube with 45° flaring tool.
    A. Measure flare diameter.
    B. Examine flare for excessive thin out.
  4. Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.

    5. Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
